Nape Electrode Montage

Titan Support

Prepare the infant’s skin before placing electrodes (if required). Clean oily skin using alcohol wipes/skin preparation gel. Use a small amount of conductive electrode gel to improve impedances.

Prepare the infant’s skin before placing electrodes (if required). Clean oily skin using alcohol wipes/skin preparation gel. Use a small amount of conductive electrode gel to improve impedances.

Place the surface electrodes (on the prepared skin).

Place the surface electrodes (on the prepared skin).

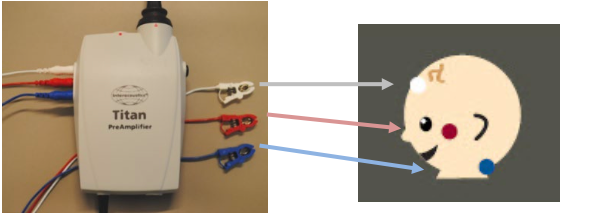

Attach the electrode cables to the surface electrodes.

Attach the electrode cables to the surface electrodes.

NB: Ensure the electrode cables are correctly attached to the preamplifier.
