How to perform FM transparency verification

Step 1: Hearing aid alone (65 dB)

Note: FM transparency assumes that the hearing aid has already been programmed to match the target, according to the patient’s hearing loss.

Launch Affinity/Callisto Suite and select the REM module. Select the FM Transparency protocol from the drop-down menu (Figure 1).

Figure 1: FM Transparency protocol.

When the protocol has been selected, a setup guide will pop up with instructions on how to perform FM transparency verification (Figure 2). See below steps for further instructions.

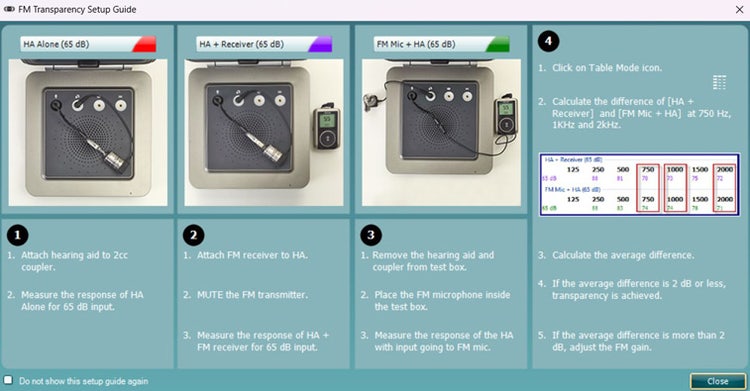

Figure 2: FM Transparency setup guide. Note: this setup guide shows a different FM transmitter.

1. Select the ‘HA Alone’ test.

2. Attach the hearing aid to the coupler/coupler microphone.

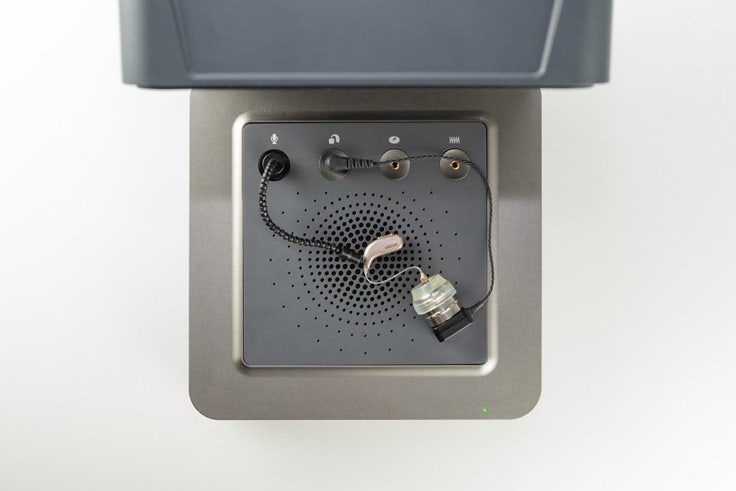

3. Position the hearing aid in the test chamber (Figure 3).
