Electrode Tips & Tricks

Eclipse Support

To ensure the optimal use of your Sanibel disposable tab or snap electrodes, please observe the following:

Ensure that the skin is clean and dry before placing the electrode It is recommended to use an alcohol wipe or similar to clean the skin If your patient's skin is sweaty or very oily, an alternative electrode with stronger adhesion, Ambu Neuroline 720 (part number 8500060), is recommended for use

It is recommended to use an alcohol wipe or similar to clean the skin

If your patient's skin is sweaty or very oily, an alternative electrode with stronger adhesion, Ambu Neuroline 720 (part number 8500060), is recommended for use

When applying electrodes to the skin, press down firmly on the entire electrode surface to improve adhesion

Use a small amount of conductive electrode gel to improve impedances, if required

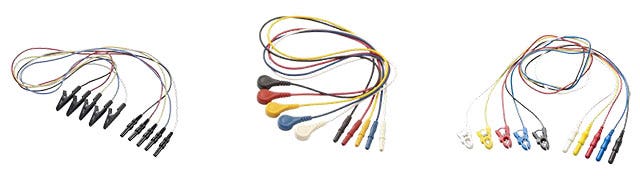

Use pinch or button cables for snap electrodes and alligator cables for tab electrodes

Electrode adhesion time is limited to a maximum of 1 hour
